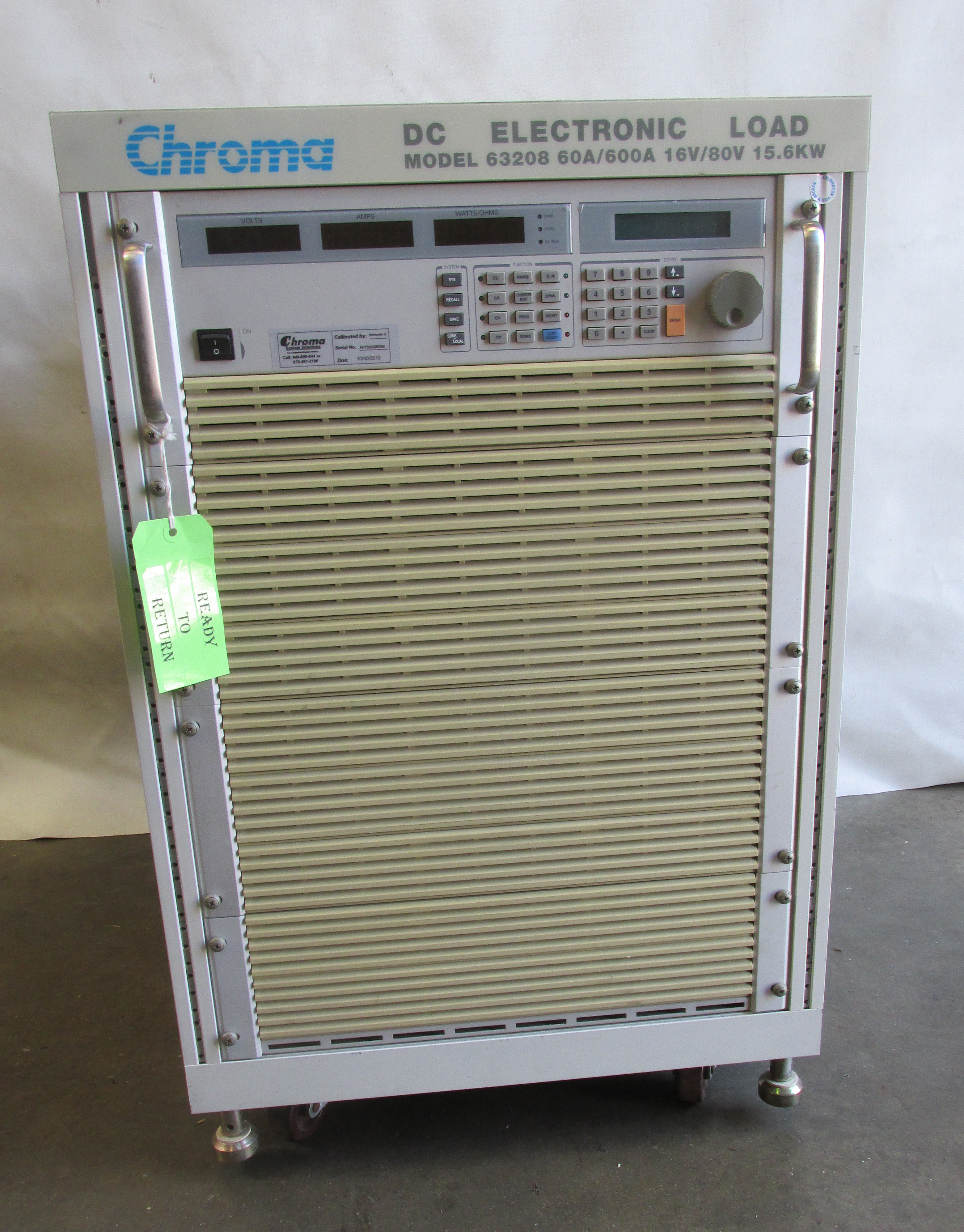

Chroma DC Electronic Load Mod. 63208 60A/600A 16V80V 15.6KW -Fresh Calibration-

63208 60A/600A 16V80V

$11,200.00 or best offer

Just factory calibrated on 10/30/2018 overall good physical condition. Comes with power cord (115V input) and two heavy cables shown. Local So. Calif. pick up or can ship freight, please send a zip code for cost, Machine weighs about 375 lbs. before crating.  Lots of details on the Chroma website including manuals, please research carefully prior to purchase to be sure this is the machine you need. Below are some details from the Manufacturer:

The Chroma Electronic Loads 63200 series are designed to test DC Power Supplies, power electronic devices, automotive batteries, and components. Its high power ratings, parallel and synchronization capabilities make them the ideal tool for testing high power UUT’s such as SMR’s, UPS’s, batteries, and fuel cells.

Key Features

  • Power Rating: 2600W, 5200W
  • Voltage range : 0 ~ 80V
  • Current range : 300A, 600A
  • CC, CR, CV, CP load modes
  • Master/Slave paralleling control mode, allow synchronous load control under static and dynamic loading mode
  • Dynamic loading : Up to 20kHz
  • Only need 1V to draw rated current
  • Programmable slew rate, up to 41A/µS
  • Measurement : Voltage / Current / Power / Resistance
  • Large LED / LCD display
  • External loading waveform simulation
  • Short circuit simulation and short circuit current measurement
  • Full protection : OP, OC, OV, OT and reverse protection
  • Versatile remote controller
  • GPIB & RS-232 interface
  • Surge load capability
  • Battery discharge timer
